Industrial Personal Computer Case Production Structure


Industrial Personal Computer, also known as industrial computer host, is a hardware assembly that integrates industrial motherboards, CPUs, memory, motherboards, hard drives, I/O input and output interfaces, and is more robust and stable than commercial computers in terms of production structure and performance. Simply understood as Industrial Personal Computer is a computer host for industrial applications. So what does Industrial Personal Computer do? Many novices don't know the specific structure of Industrial Personal Computer. I will tell you how to solve the structure and composition of Industrial Personal Computer produced and processed by PTJ.

Understand the hardware composition and working principle of Industrial Personal Computer in one article

First, let’s take a look at the overall appearance of Industrial Personal Computer as shown below:

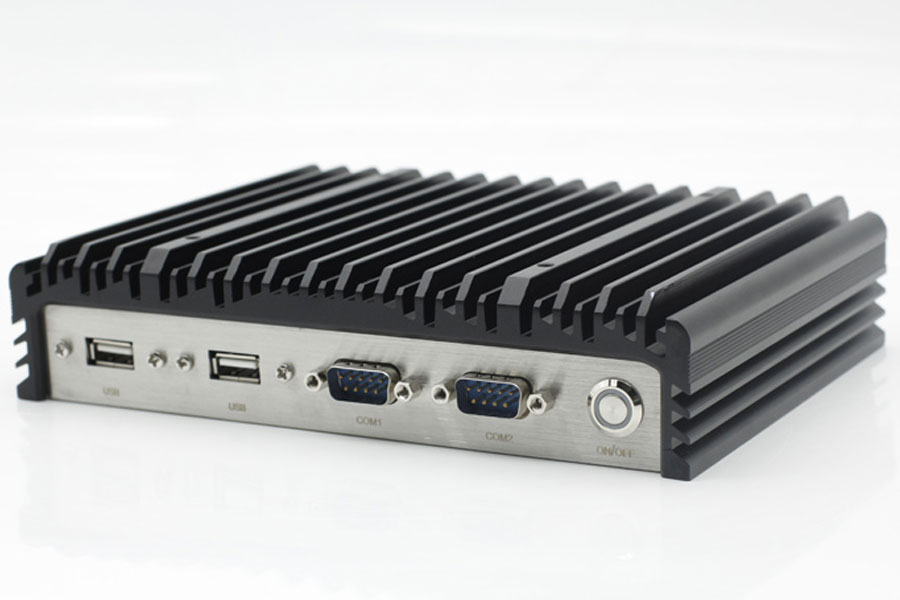

The composition and appearance structure of the industrial computer

From the appearance, it is known that Industrial Personal Computer is equipped with a front baffle and a mold opening on the baffle to install I/O interfaces and power switches. The black part is made of aluminum alloy profiles and the fin-type design is mainly for heat dissipation to increase the heat dissipation area. need. Let's explain the appearance of Industrial Personal Computer before assembly, as shown in the figure below:

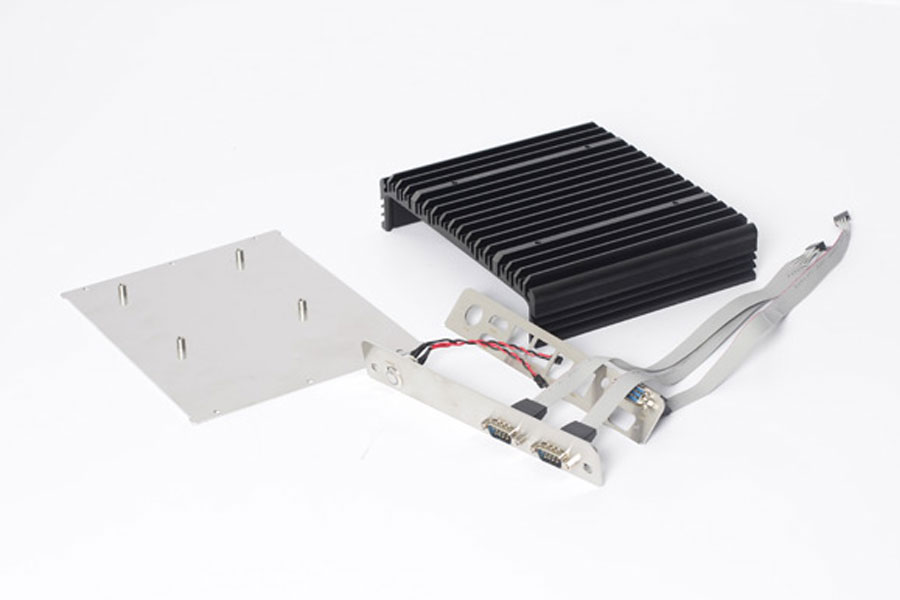

The appearance and structure of the industrial computer

The appearance structure of Industrial Personal Computer is front baffle, rear baffle, heat dissipation aluminum fins and stainless steel sheet on the back cover. Install COM, VGA, power switch, USB interface and other input and output parts on the front and rear baffles.

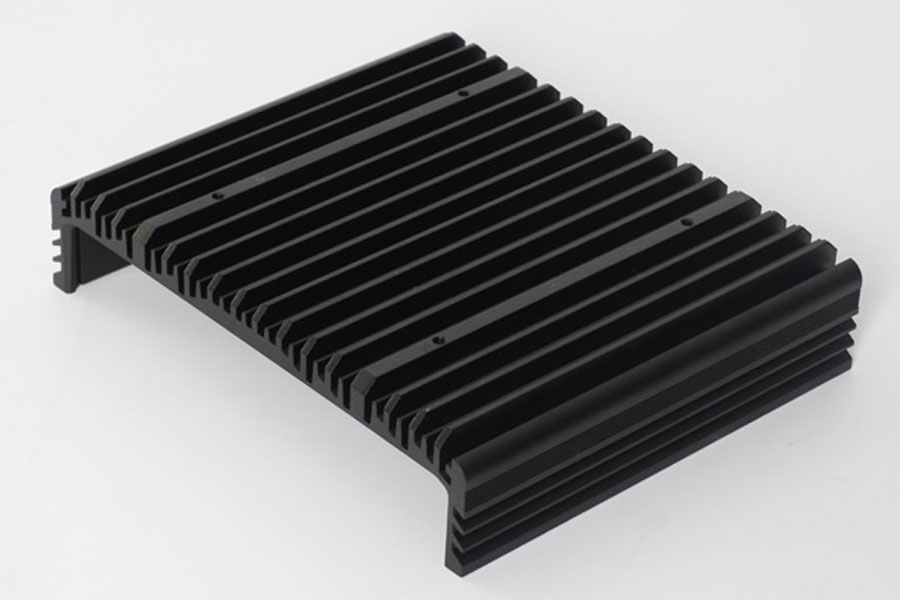

Aluminum profile of industrial computer housing

In terms of heat dissipation, the fanless Industrial Personal Computer uses aluminum profiles. The design of this aluminum profile is to increase the heat dissipation area and stabilize the performance of Industrial Personal Computer. According to what the structural engineer asked by the editor, Industrial Personal Computer is applied to this aluminum profile. First, the aluminum alloy is formed by pouring and extruding the half-melting aluminum alloy when the aluminum alloy is in the state of the half melting point. The concave-convex strip housing.

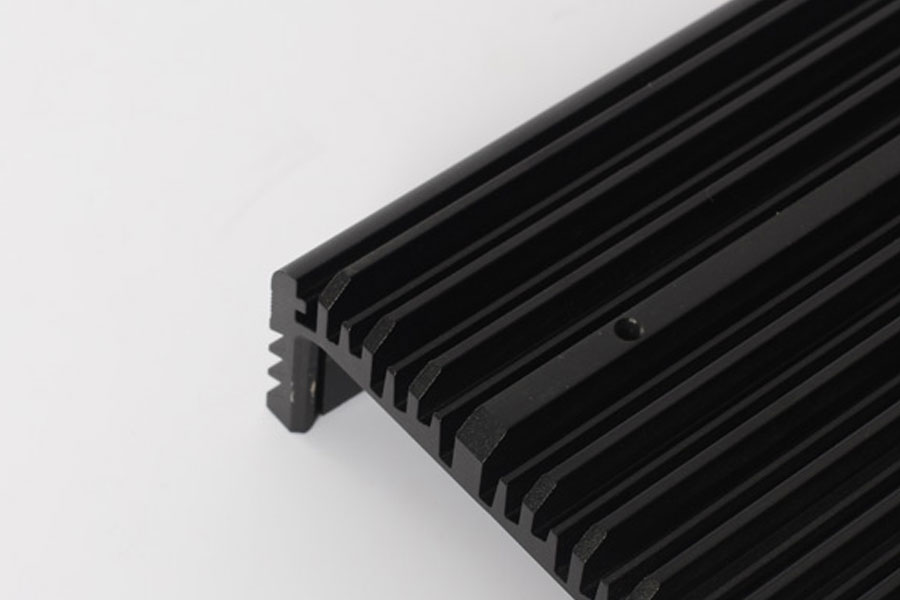

Hole on the aluminum profile shell of industrial computer

After the back shell is extruded, a hole is punched on the back through a machining process, which is convenient for customers to install Industrial Personal Computer.

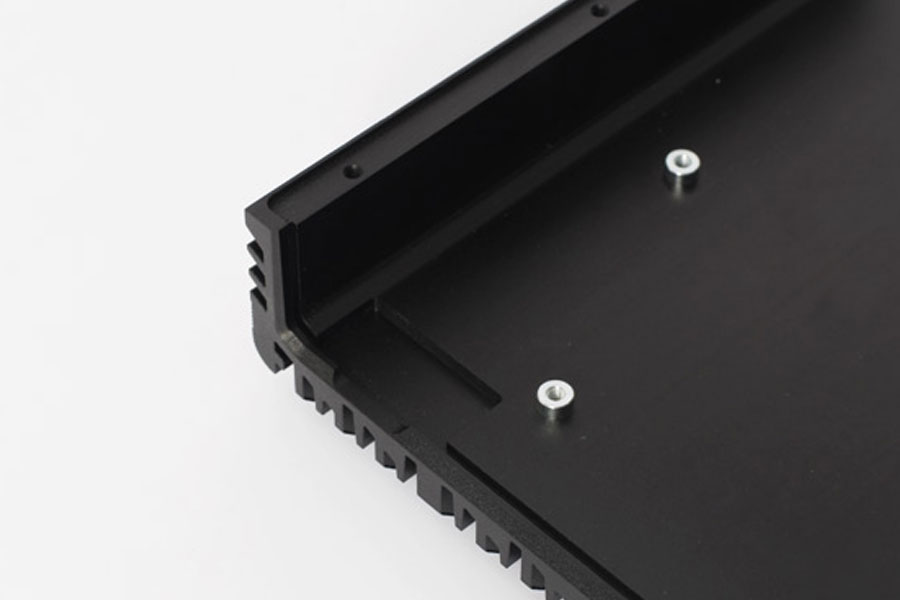

The back of the heat sink fins of the industrial computer is machined

When making the fins, the structural engineers have considered the product assembly issues. When assembling, the back of Industrial Personal Computer's radiating fins is machined with holes and slots to facilitate the assembly of front and rear baffles and the installation of the motherboard.

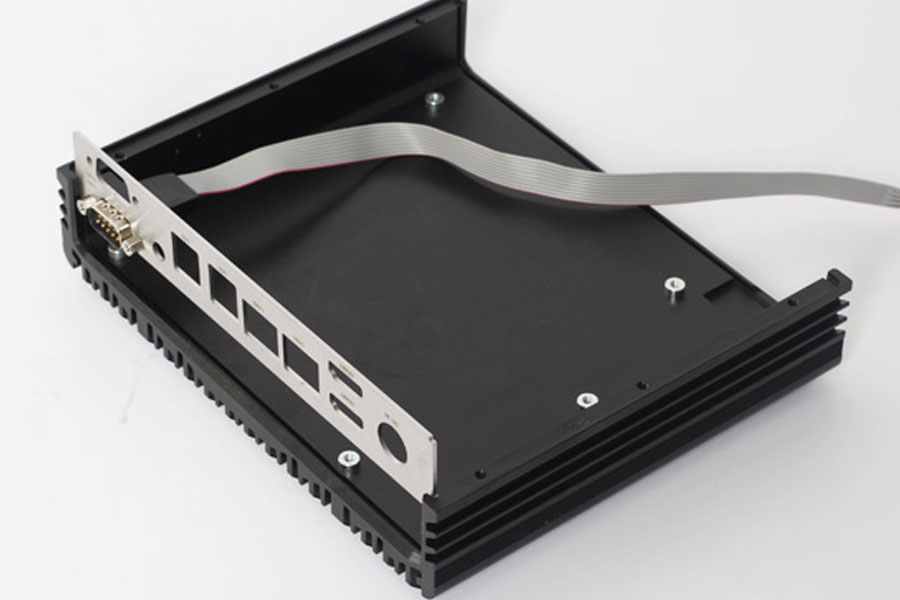

Installation of front baffle of industrial computer

From the above picture, we know that the machining is for the front and rear baffles, and the design is seamless. This structure design is dustproof and durable.

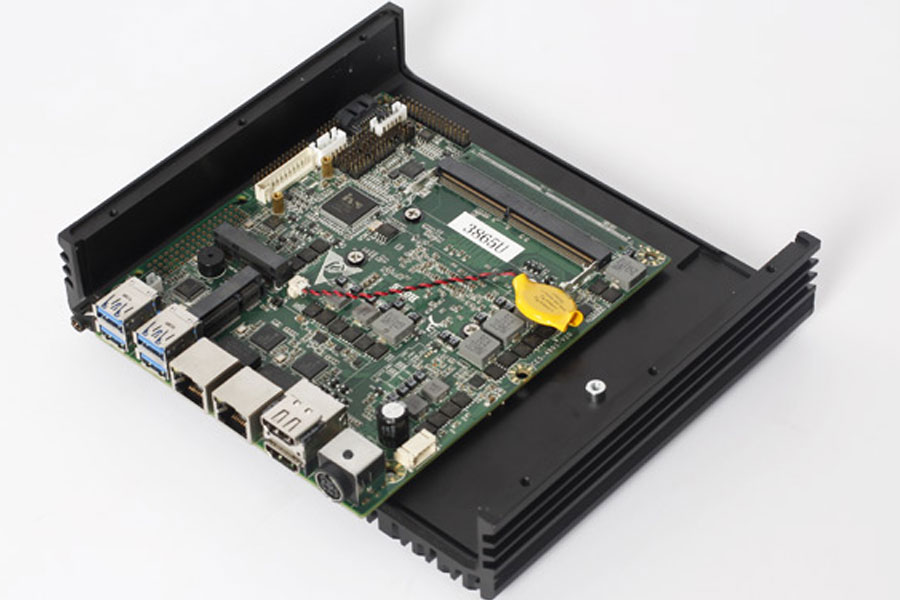

Install the industrial computer motherboard comparison position

When installing Industrial Personal Computer, the factory usually installs the cable design and the case, installs the CPU, memory, hard disk, heat sink, etc. on the motherboard, and then puts this into the junction box for wiring.

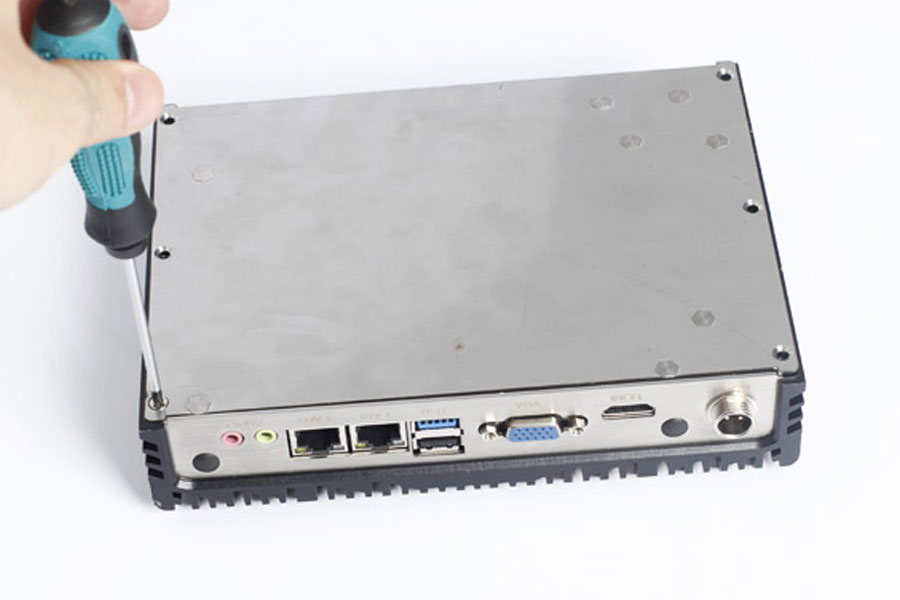

The industrial computer is screwed and fixed

The editor remembers that once I saw the boss screwing in the factory, the editor asked curiously, "Boss, why did you come to the assembly department to screw screws?". The boss replied weakly: "Don't you think that screwing is a very happy thing?" Afterwards, the editor understood what the boss was in at the time. The other screwing was the last step. A complete Industrial Personal Computer will be born. I am in a good mood to see the "work" after screwing.
